8/17/2010 Yashica Electro 35 GSN Repair - Part 1

This is how it went down.

I took off the battery check button plate.

From Yashica Repair


Taped the button in so I wouldn't lose it.

From Yashica Repair

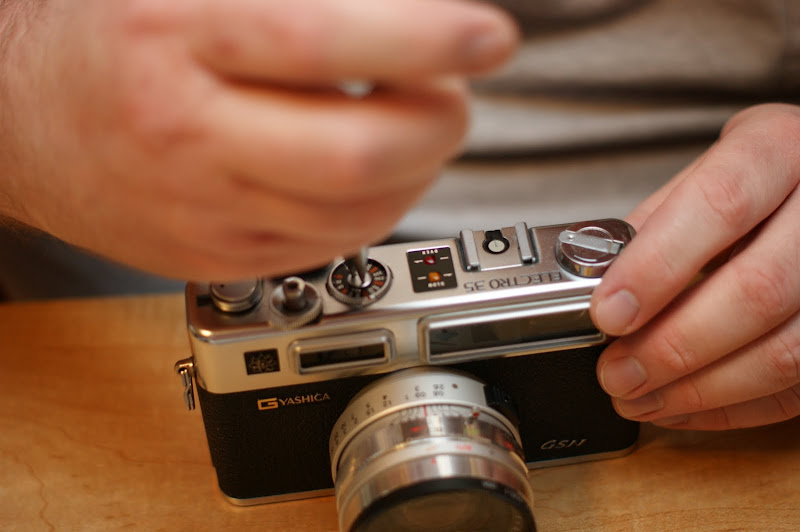

The ASA dial wasn't coming off without a fight. I had to heat it with a soldering iron to loosen it up.

From Yashica Repair


Getting it to move finally.

From Yashica Repair

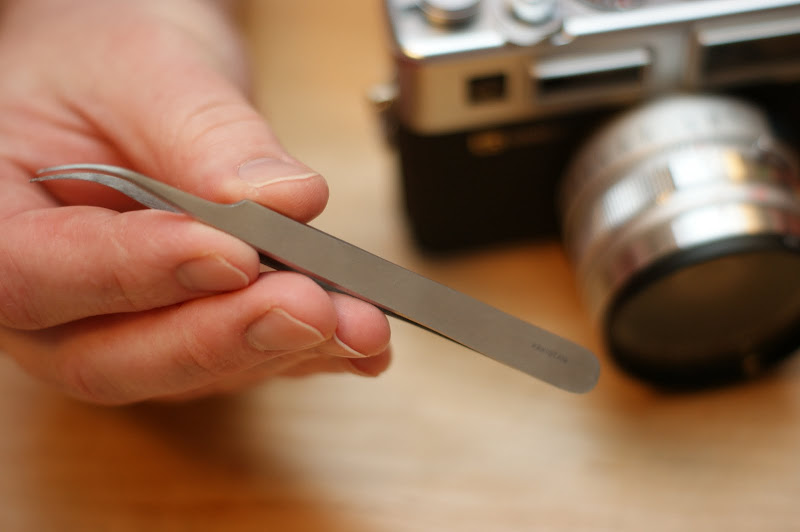

An indispensable tool.

From Yashica Repair

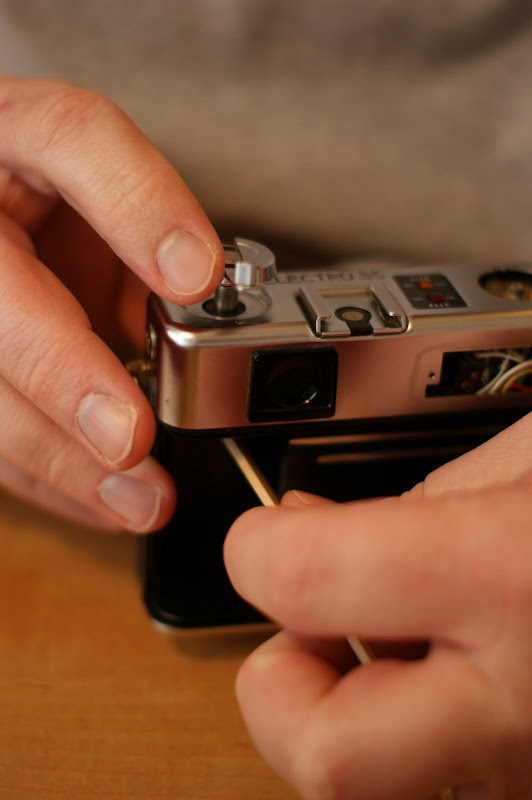

Taking off the film advance lever.

From Yashica Repair


From Yashica Repair


The rewind knob.

From Yashica Repair


From Yashica Repair

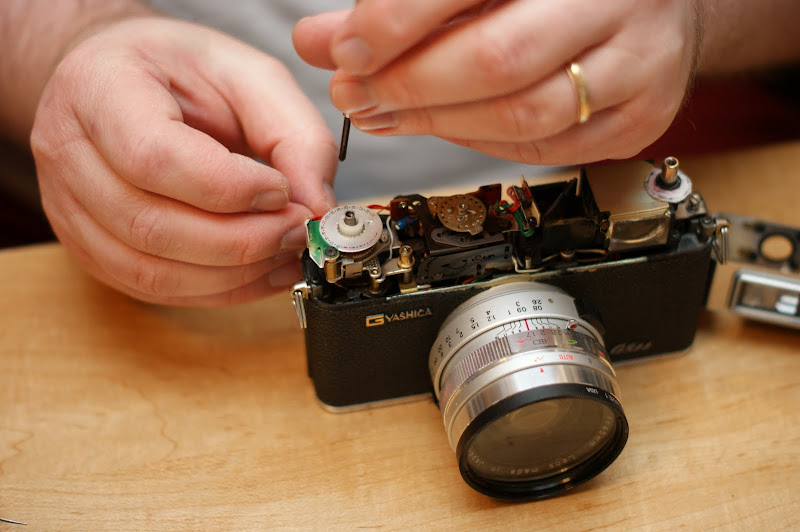

Rewind knob removed.

From Yashica Repair


Slightly out of sequence, the screws that hold the top cover on.

From Yashica Repair

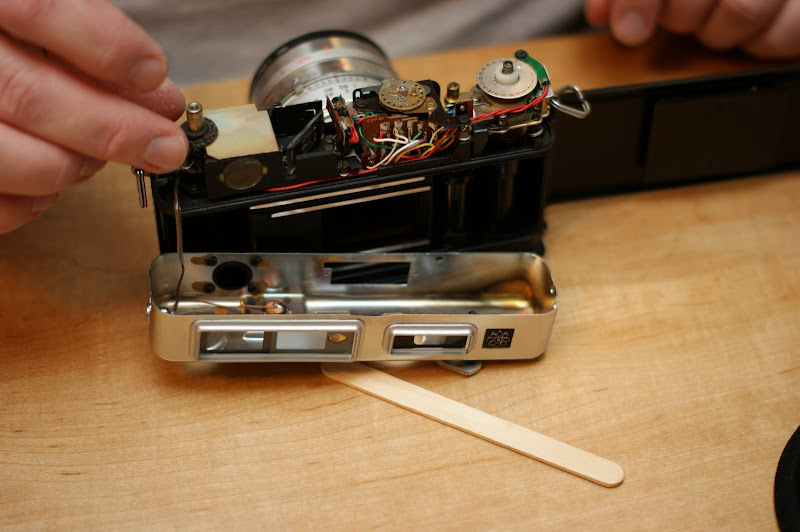

The top cover removed.

From Yashica Repair

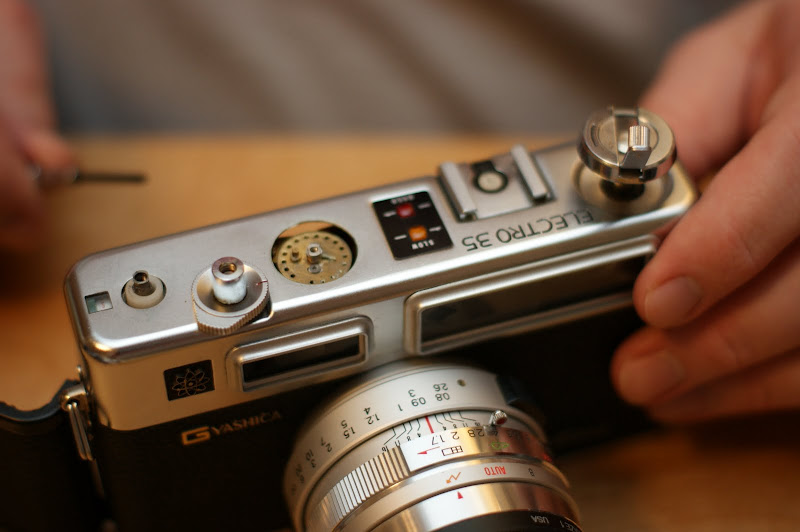

You can't really see it but under there is the "Pad of Death".

From Yashica Repair


Removing the screws so I can get the lens assembly off.

From Yashica Repair

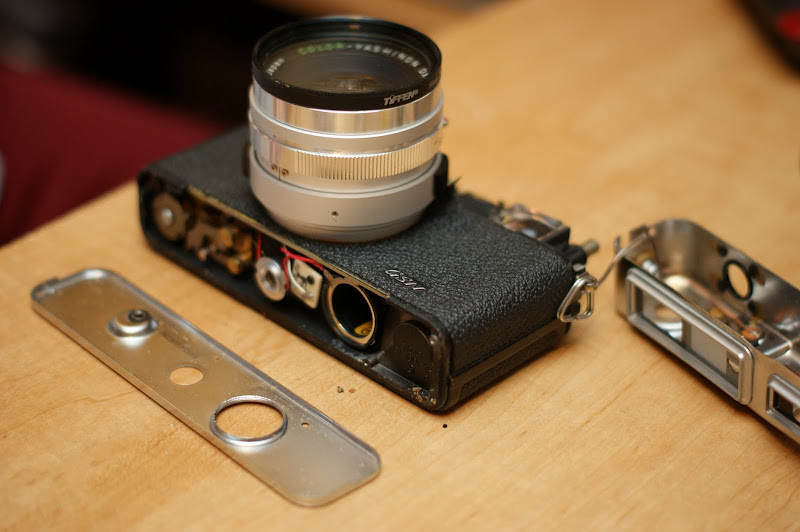

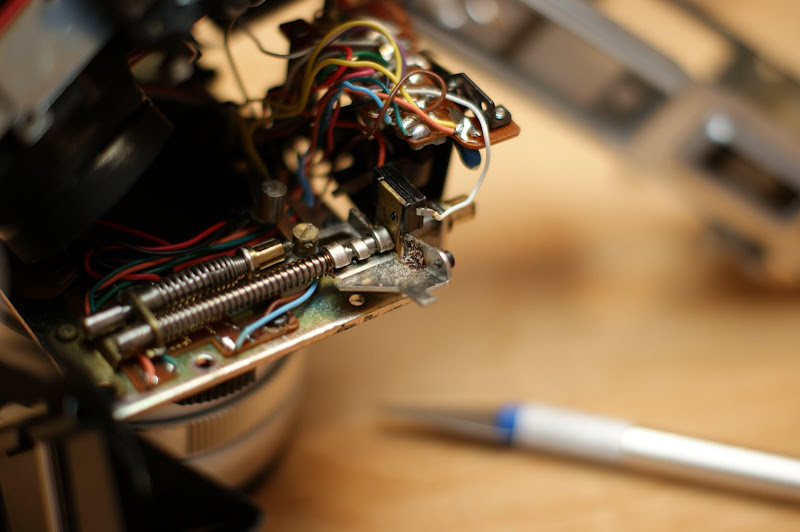

The bottom removed. Notice all the little pieces of the disintegrated pad.

From Yashica Repair


From Yashica Repair

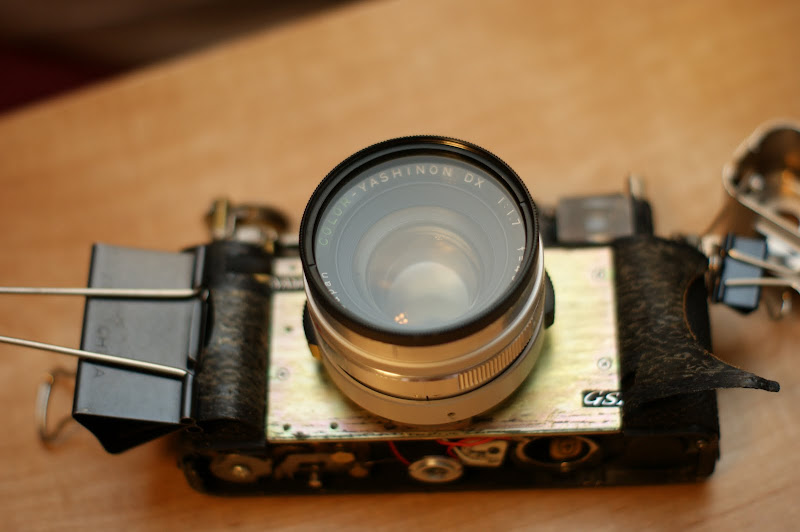

The skin all flayed.

From Yashica Repair


What's left of the pad.

From Yashica Repair


This will be continued, most likely Saturday. While I was taking it apart a wire broke that went to the lens assembly so I'm going to have to take it apart further and solder it back together.

Maybe these pictures will help you if you're doing a "Pad of Death" replacement. If you are, please check out the guide at the Yashica Guy's page because it's what I was going by. Many thanks to The Yashica Guy and the fine folks over Rangefinder Forum for all of the great info there as well. Most of all, thanks to my beautiful and talented wife, Ami, for taking 99% of these pictures. I really appreciate her patience.
